Delivery:
IN STOCK. Delivery: 5 - 7 days
Key Features:
- Pack: Pack of 10 x sheets
- Colour: Clear
- Length: 3000mm, 4000mm, 6000mm
- Width: 670mm
- Cover width: 600mm (when overlaped)
- Suitable Timber Rafter Width: 30mm - 50mm

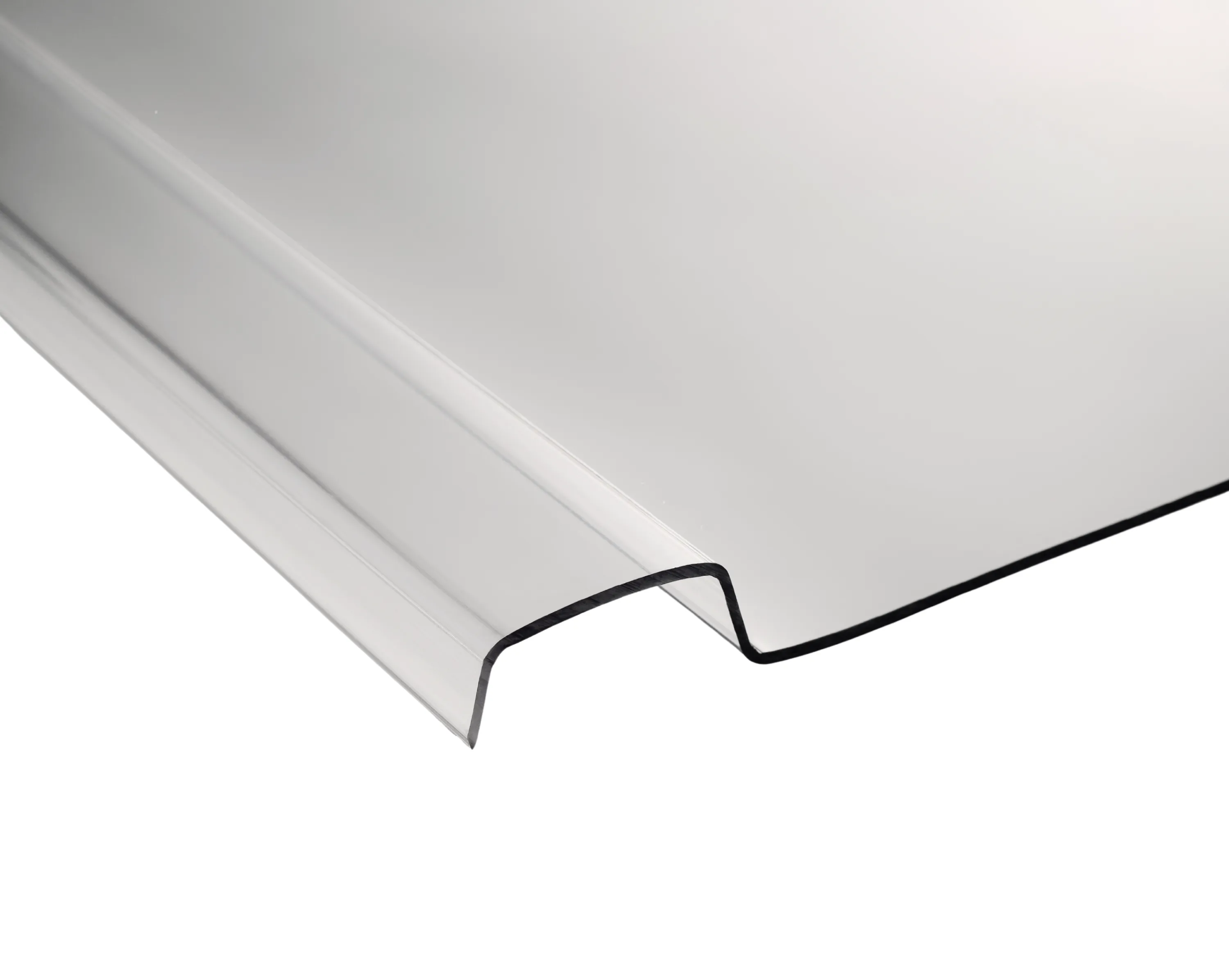

- Thickness: 3mm
- U-Value: 5.45 W/m2k
- Sheet Weight: 3.97kg/m2
- UV Protection: Co-extruded UV protection layer on one side
- Aesthetic: Combining a glass-like aesthetic with durable qualities of polycarbonate and 90% light transmission
- Guarantee: 10 year Warranty
Description:

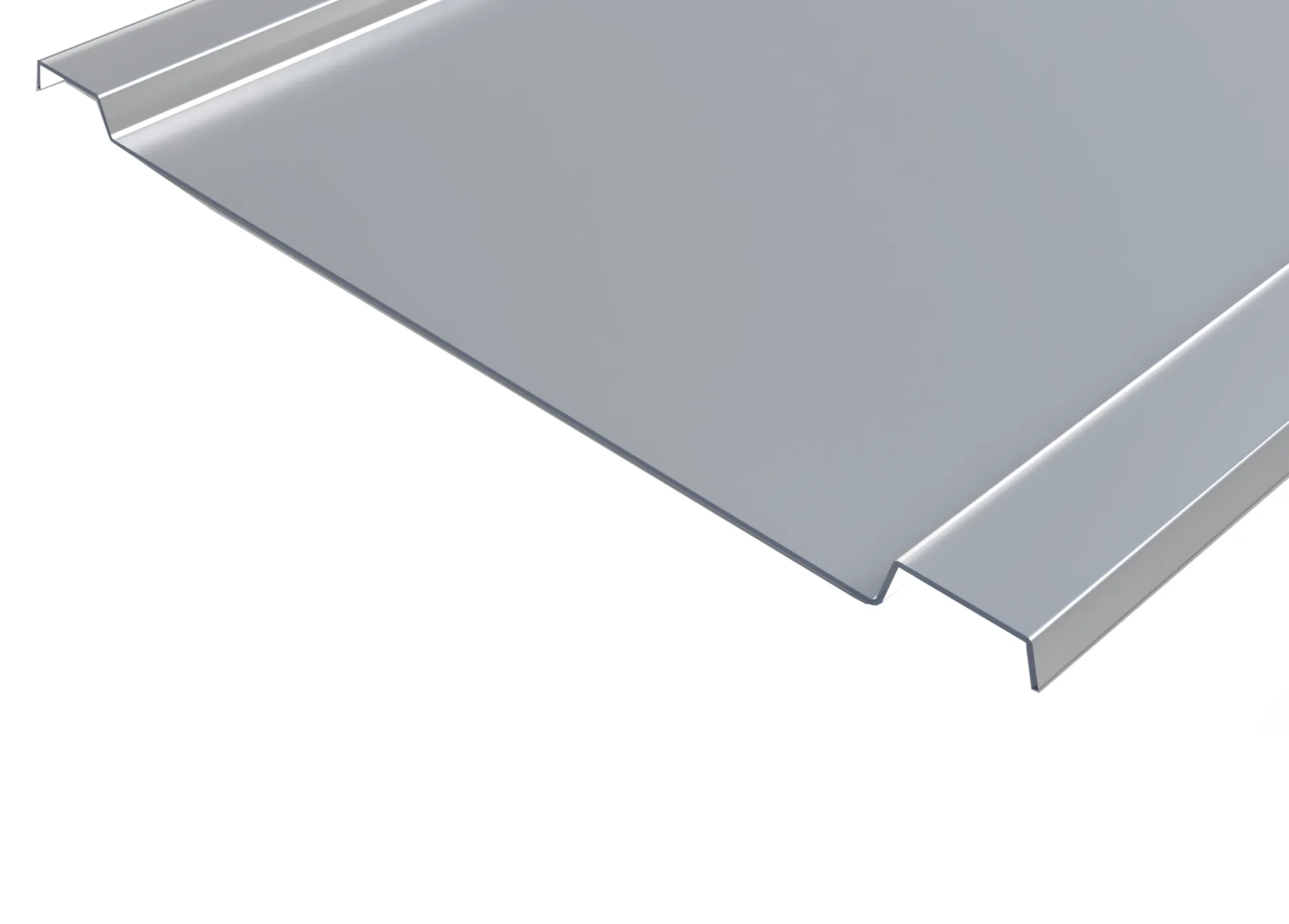

The Poly X Modular Roof System is the ultimate solution for designing your ideal outdoor area. Create spaces designed for relaxation, entertaining, fitness, or quality family time. With its sleek, glass-like panels that install directly to rafters using standard tools and minimal components, achieving a seamless look has never been easier.
The Poly X Modular Roof System combines high performance with the versatility to enhance any outdoor area. Whether attached to your home or set up as a free-standing structure, enjoy the perfect blend of sun and rain protection, while making the most of your outdoor time.

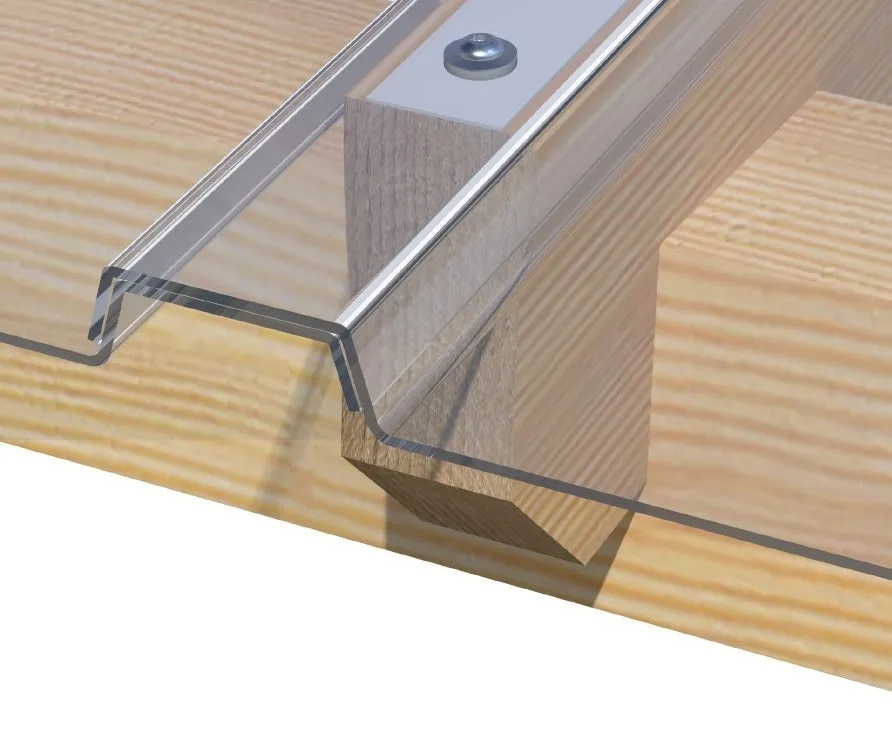

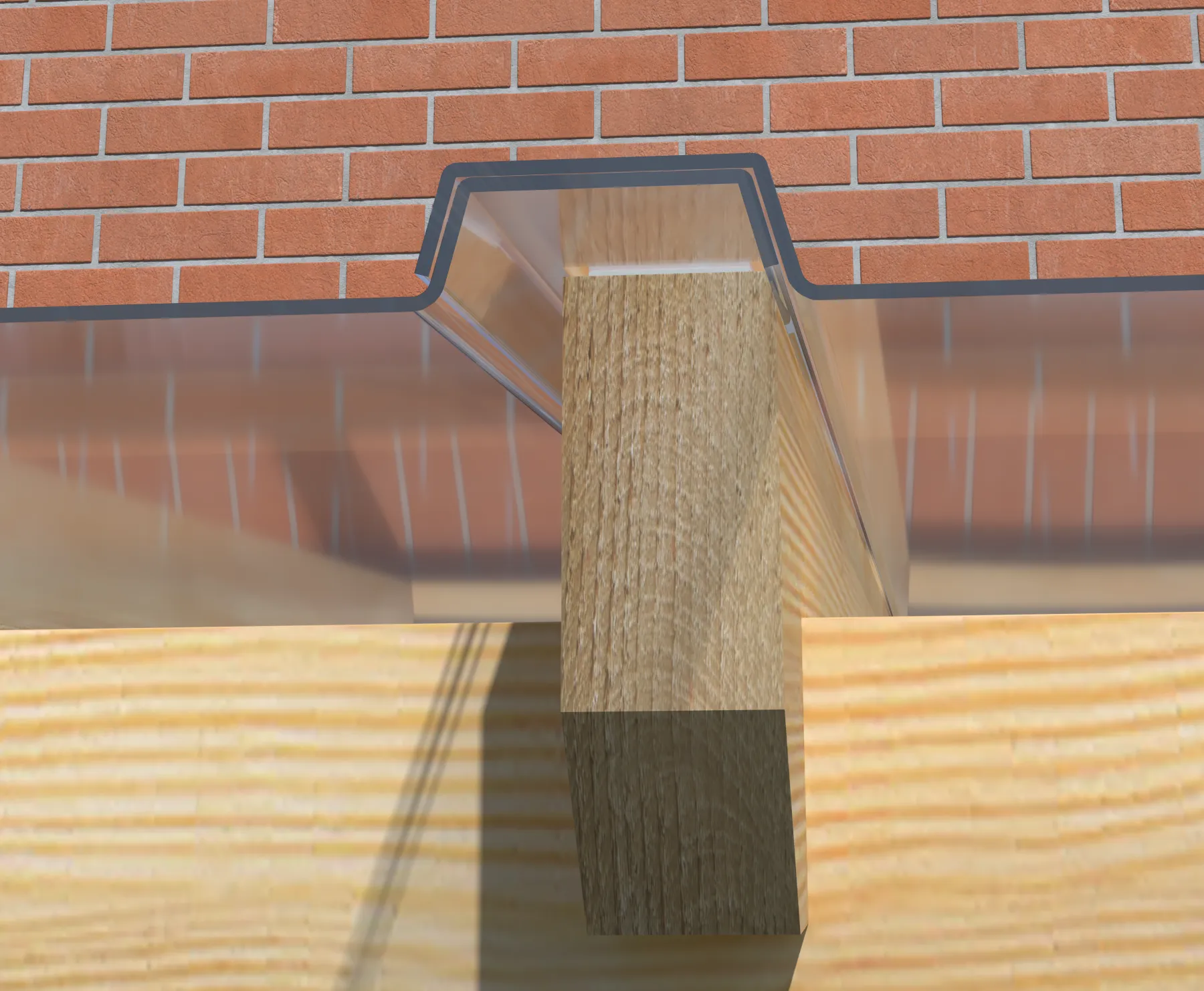

Easy to install and maintain, the sleek 3mm glass-like panels attach directly to rafters,
eliminating the need for costly glazing bars. The installation process is quick, resulting
in a refined, professional finish. Combining a glass-like aesthetic with the durable qualities of polycarbonate. With 90% light transmission, enjoy bright, natural light without compromising on strength or longevity.

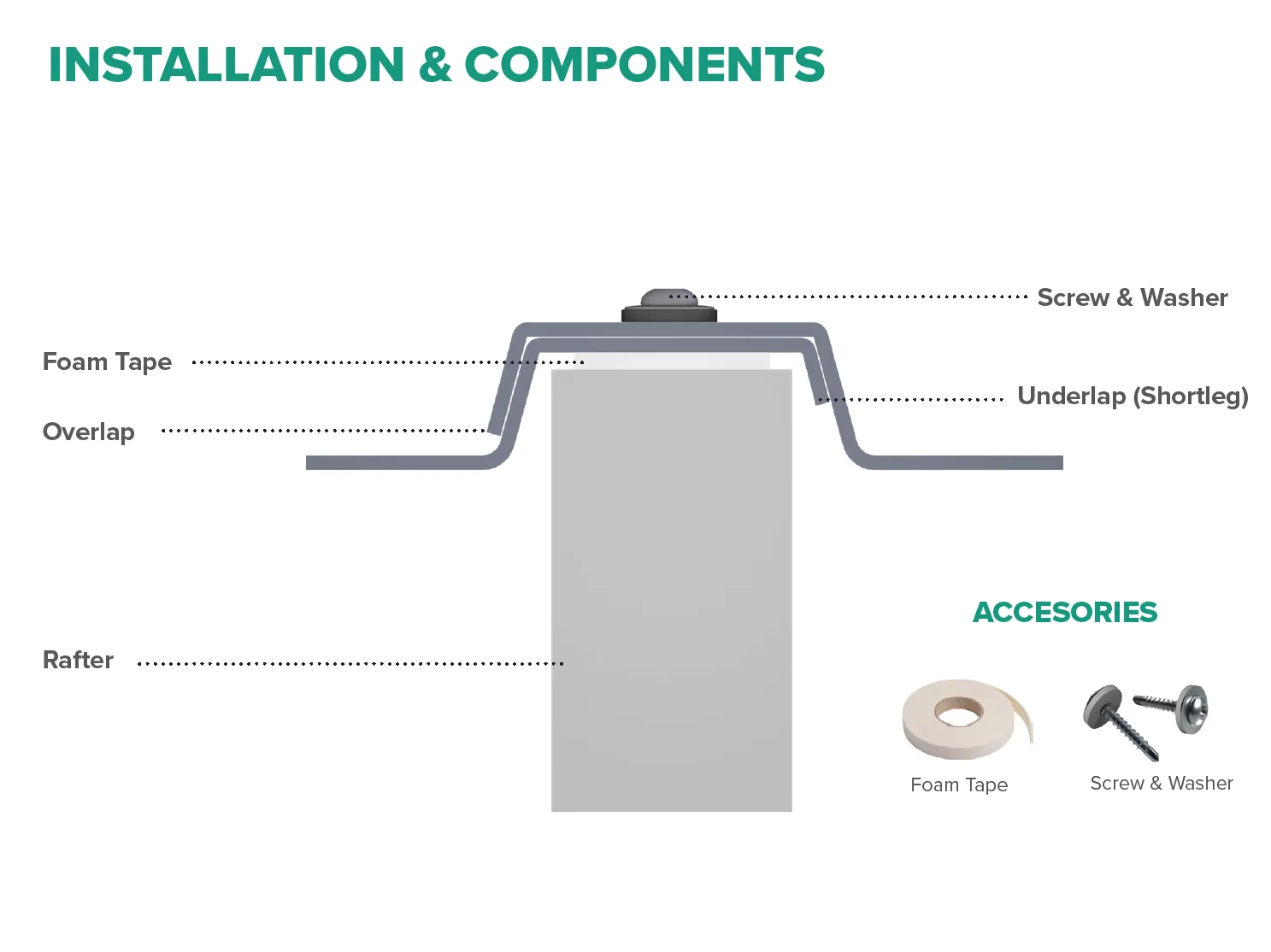

Allow for thermal movement, approximately 3.5mm per meter. For sheets up to 5m, a 12mm diameter fixing hole with a 5.5mm fixing should suffice. Use white foamed EPDM barrier tape on rafters to reduce noise from thermal expansion.

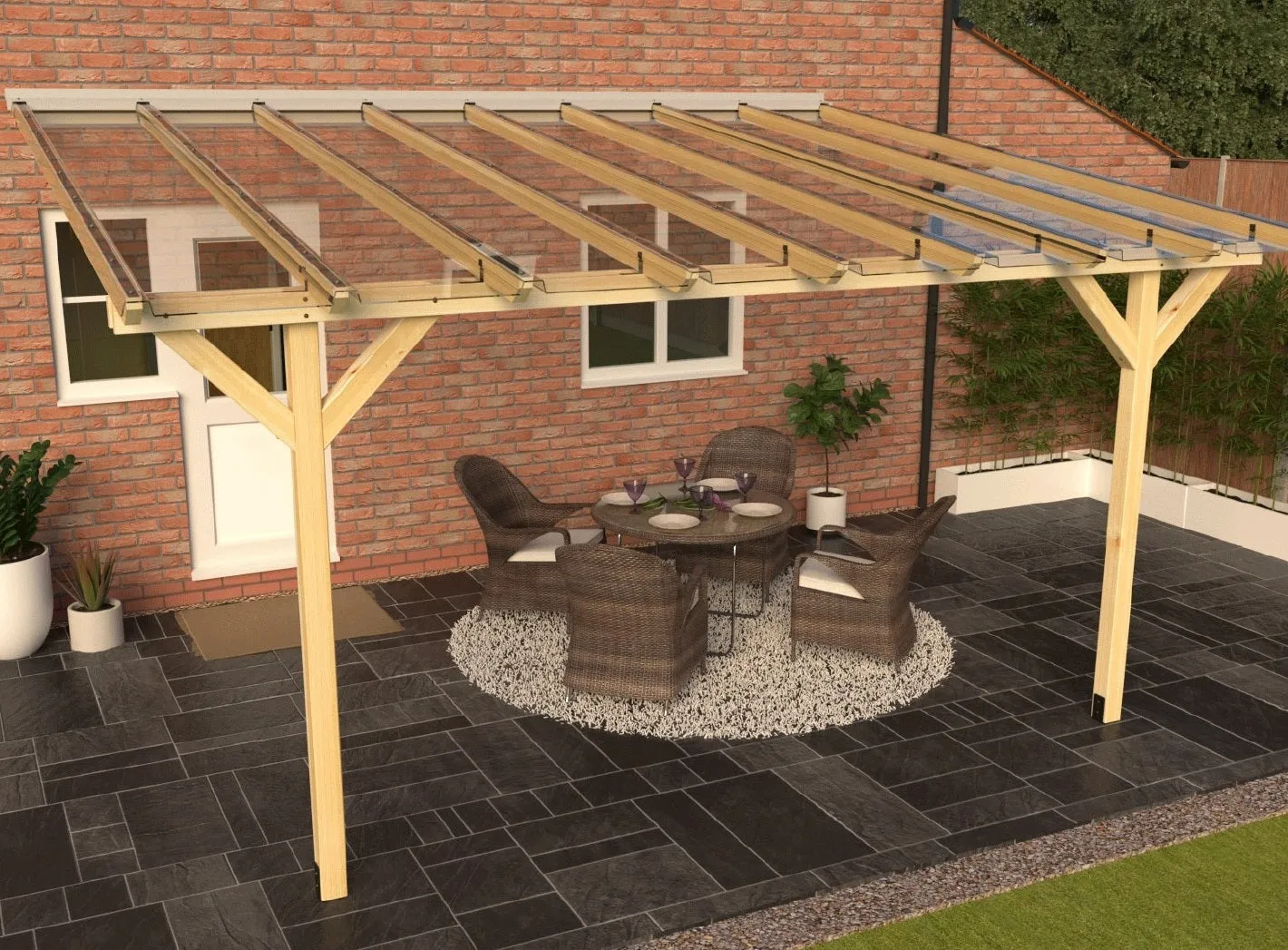

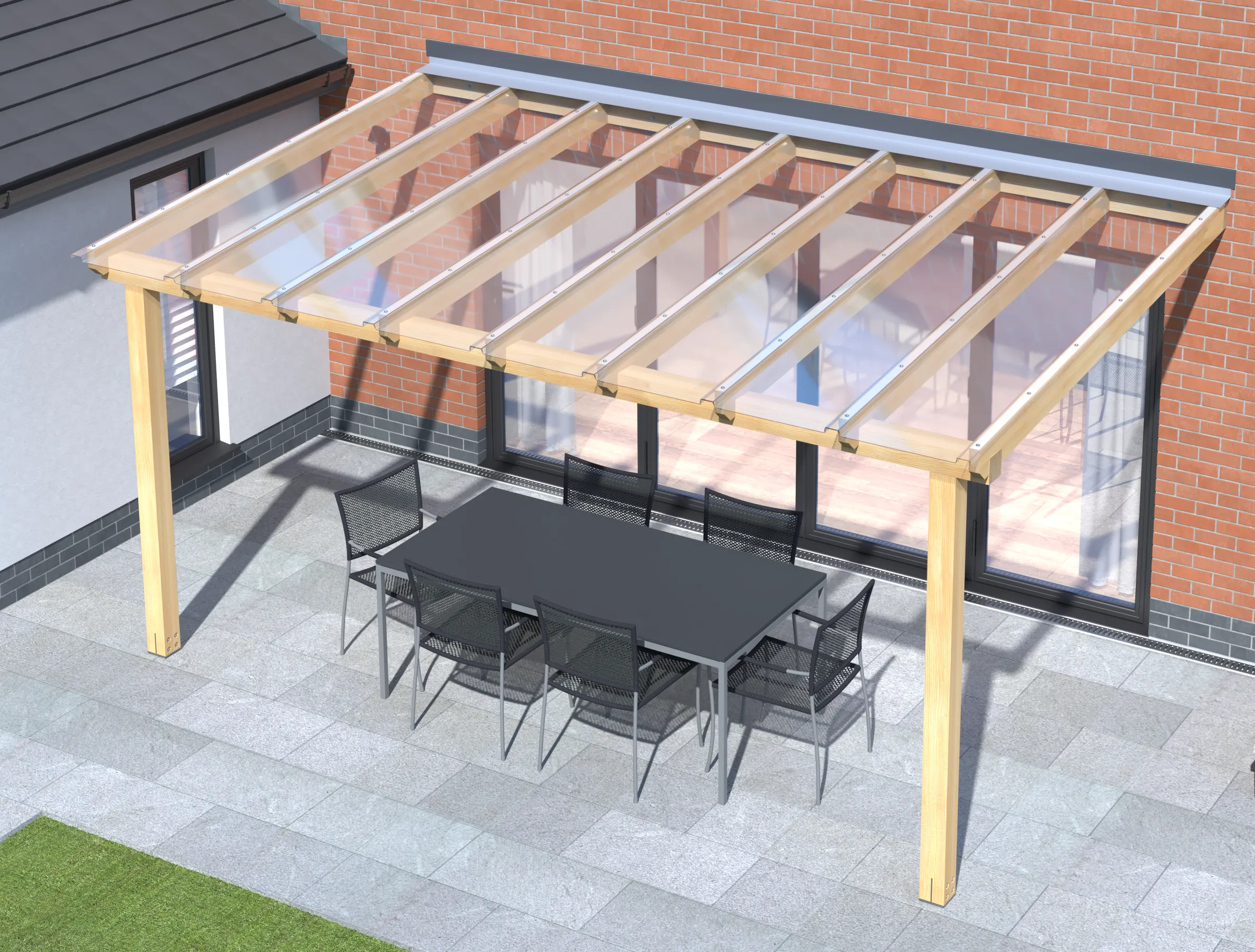

Whether you need shade in warm weather or rain protection in wet climates, the Modular Roof System has it all covered. Ideal for Canopies, Pergolas, Swimming Pool Covers & Carports
